S-20-058A
S-20-058A
Design Notes
- Code – ASME Sec IV HLW
- Design Pressure – 150 psi
- Test Pressure – 150 psi
- Interior – Ultonium® Glass Lining with Microban®
- Exterior – Primed Painted
- Supports – Sits on Shell
- Capacity – 80 Gal.
- Weight – 100 Lbs.
Material Specifications
- Heads – Carbon Steel
- Shell – Carbon Steel
- Couplings – Carbon Steel
- Flanges – N/A
- Pipe – N/A
- Manway – N/A
Please note: No modifications can be made to this tank

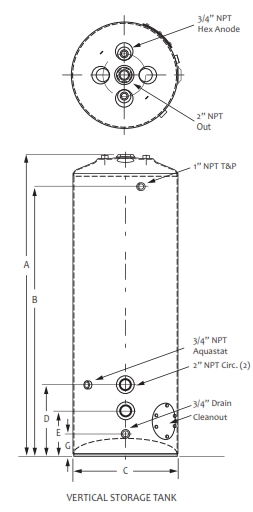

| Mark | Dimension | Remark |
| A | 58 1/4″ | Overall height |
| B | 52 1/16″ | Relief |
| C | 20″ | Diameter |
| D | 13 13/16″ | Circulation |
| E | 8 13/16″ | Circulation |
| G | 4 5/16″ | Drain |
Bare
Jacketed and Insulated
Bare
Jacketed and Insulated
